Artificial Intelligence Software for Fast Automated Screening of Chest Ailments (such as TB) using Chest X- Ray Images, in collaboration with ICMR headquarters, Delhi. -https://tb.ai.icmr.org.in/ai4tb/

Artificial Intelligence (AI) Software for Fast Automated Screening of TB (Sputum)
AI with EEG signals for prediction of seizures, in collaboration with AIIMS Delhi.
Automated and online Human detection in CCTV images.
Use of image processing and AI in automation of experiments at IPR and external agencies.
Other potential areas of AI application like hand movement, gesture recognition,  big data analysis are part of other collaborations.

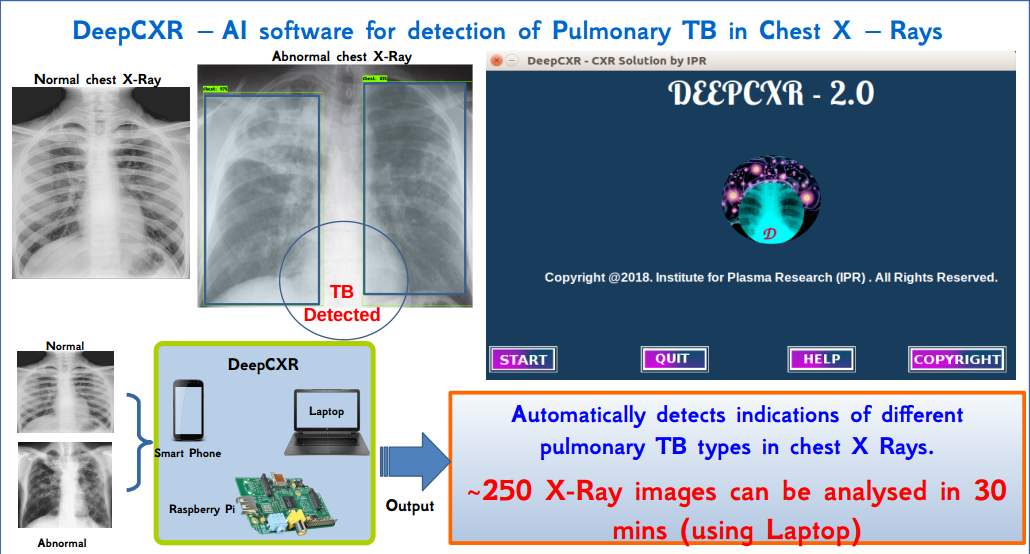

DeepCXR
Institute of Plasma Research developed AI tool for detection of TB and other lung disease using Chest X-ray, was tested on limited data set and therefore the entire range of variables have not been covered.

MOU signed & training of tool initiated on the  data of culture confirmed X-rays from previous surveys which includes data from four zones of India.

At present tools are in advanced stage of testing with numerous images from various sources. This work is being carried out in collaboration with Civil Hospital, Ahmedabad, ICMR, head quarter Delhi, NIRT, Chennai and other participating institutes/medical colleges in India. The software has the capability of processing more than 250 images in 30 mins.

A central website has been developed at ICMR Delhi https://tb.ai.icmr.org.in/ai4tb/

A pre processing software was developed by IPR and training was given to all participant institutes .

For our software DeepCXR we need digital CXR(chest x-ray). For this purpose a prototype of digitizer of chest X-rays was developed and tested.

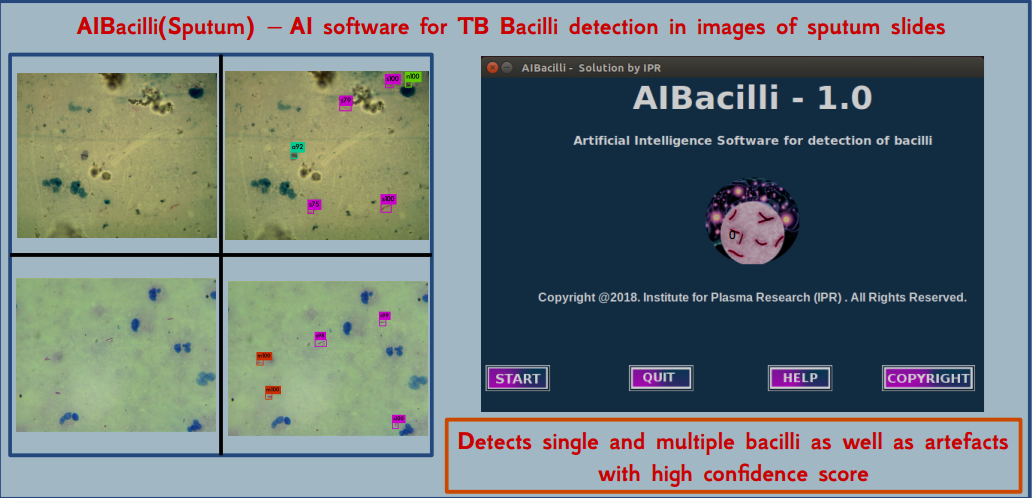

AIBacilli
This is another AI software developed at IPR for automated detection of single/multiple mycobacillus in sputum smear test. This AI based Software uses AI based technique of Object Detection. Software development together with the relevent Hardware automation is being carried out to simplify the current practice. The work is being carried out in collaboration with Civil Hospital, Ahmedabad.

The softwares are capable of running on CPU/GPU/ARM devices.





Security system:

AI tools on the top of existing security systems are designed, developed and deployed for 24 x 7 monitoring of critical areas/lab spaces etc. GUI interface, data storage, network connectivity forms the part of the system. We have trained,tested and validated a CNN model which determines the object of interest (human) in live CCTV frames.





Blockchain technology for data sharing/authentication/Validation

Blockchain Technology: Web 3.0 based advanced encryption technologies are integrated with current software to leverage the benefits of decentralization. The software is designed to interact with public blockchain nodes, stores the encrypted values in block of defined pre-defined contract to be retrieved at later date. The software has numerous applications like govt data repository, certificates, digital health records etc.




Recent Publications
1 A. Abhishek et al, Real Time Close Circuit Television: Artificial Intelligence Monitoring Solution, Technical Report-617, Feb 2021
2  A. Abhishek et al System and Method for Screening Chest X-Ray Image for Diagnosis, – Indian Patent App. No. 201921016615
3 Manika Sharma, H. Hemani et al , Towards finding Vocal signatures of Covid-19 in cough Sounds –IPR/RR-1253/2021
4 SC A Vaid et al., Emerging Advanced Technologies Developed by IPR for Bio Medical Applications - A Review, Neurol India 68 (1), 26-34, 2020

Conference presentations :
An Artificial Intelligence based Solution for SST­1 Tokamak building monitoring, Agraj Abhishek et al, Poster presented in PSSI 2021
Image processing and its application in Tokamak

Introduction Visible   image   acquisition   is   one   of   the   activities   during   Plasma   experiments   to diagnose Tokamak Plasma. Due to the presence of strong magnetic fields in and around Tokamak, the camera cannot be directly kept inside the Tokamak. For imaging purpose where camera can’t be used directly, optical fiber bundle is used with camera to capture image. The image captured using optical fibre bundle has some noise, which is referred as Honeycomb structure. Software package developed for removal of honeycomb structure. The executable software package is capable to read from USB/IP camera or from stored video file.

A prototype for image processing based feedback as required for experimental setups is also being developed and tested.



Fig: Image captured using wound image bundle (noise can be seen in black stripes referred as honeycomb structure )


Fig:Digitally processed to provide clear image

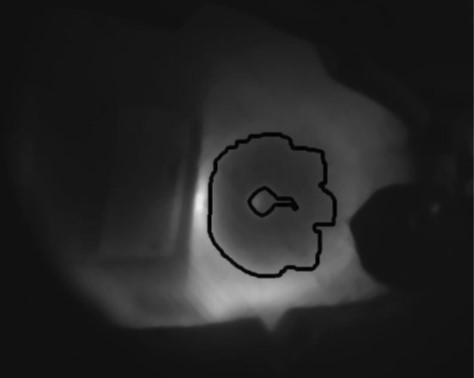

Image processing of plasma images for boundary extraction (from  SST-1 imaging diagnostic)

Digitally processed to provide clear image with plasma boundary extraction


captured using wound image bundle (noise can be seen in black stripes referred as honeycomb structure )
