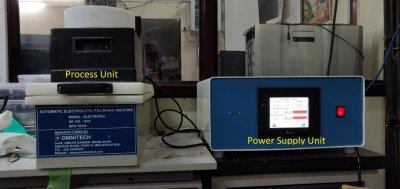

Electro Polishing and Etching machine

Contact: Mr.Shailesh Kanpara

(skanpara AT ipr.res.in)

Ph.No: +91-79-2396 2239

Scope of equipment: Electro polishing and etching machine is used widely for the metallography of specimen/samples such as stainless steels, copper alloys, Tungsten and Tungsten alloys, etc. Eletcro Polishing and Etching includes very fine polishing (less than 1 micron) followed by revealing the microstructure of a specimen using suitable electrolytes.

Make:- M/s. Omni Tech, Pune

Model:- Electopol

Technical Specification (major):

  1.      Polishing Voltage: 0 to 110 V DC

  2.      Polishing Current: 0 to 10 Amp

  3.      Etching Voltage: 0 to 15 V DC
  4.      Etching Current : 0 to 2 Amp
